JACK & JILL LIVING CONTAINER



40-FOOT JACK & JILL LIVING CONTAINER

Download Living Space floor plan catalog

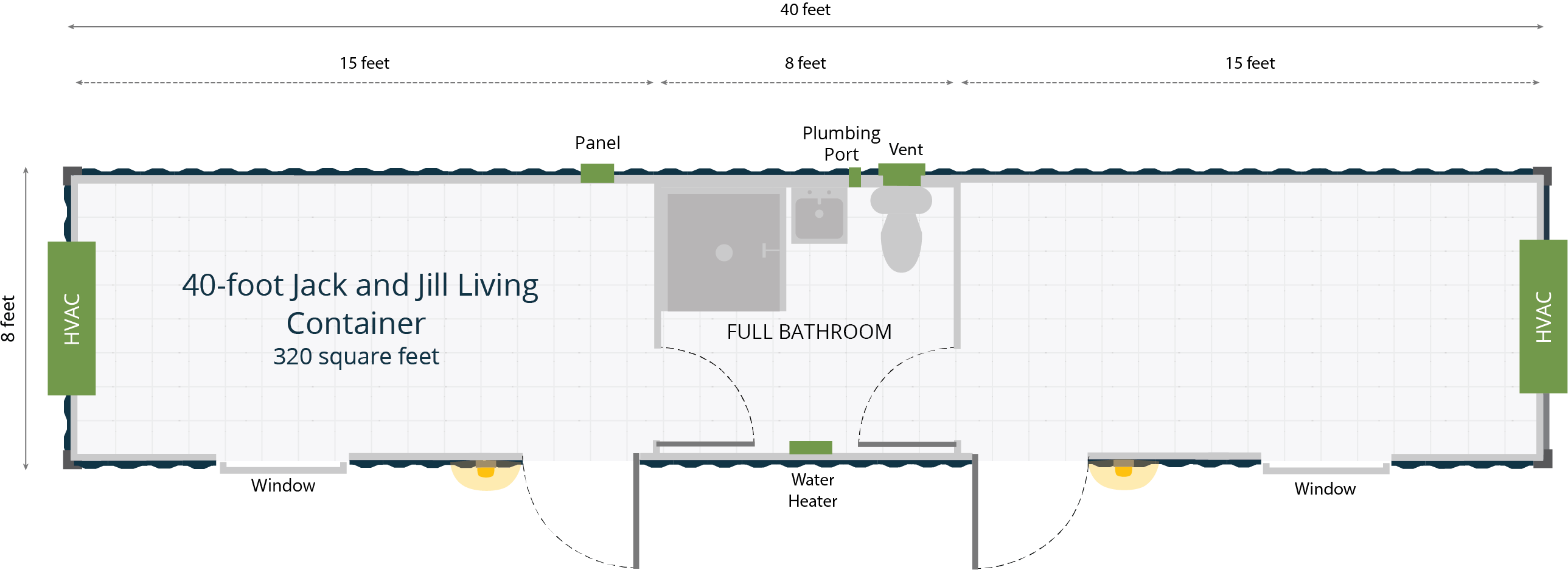

The 40-Foot Jack and Jill Living Container

FS-P-40DO-FB

Starting Price: $28,466

Request a Quote
SPECS
  • ¼-inch painted wood paneling over wood framing and batt insulation
  • Two 3-foot by 3-foot windows
  • Two 3-foot wide exterior personnel door
  • Two exterior security lights, each adjacent to the personnel door
  • Two standard 4-foot light fixtures in each living area, each with two 4-foot LED tubes and two standard 2-foot light fixtures in bathroom, each with 2-foot LED tubes
  • Eight duplex 110V outlets in living area, one outlet in bathroom
  • 125A panel with disconnect and data pass-through
  • Two 15K PTAC units, one at each end
  • Two partition walls, each with locking interior door
  • Vinyl coin flooring in bathroom
  • One ventilation fan, toilet, vanity and mirror in bathroom
  • One 3-foot by 3-foot shower
  • One electric tankless water heater
  • Original marine-grade plywood or bamboo floors in living area
  • Built in a standard, one-trip (close to new) container
  • Cargo doors are inoperable

EXTERIOR

Width

8 feet

Length

20 feet

Height*

8 feet, 6 inches

INTERIOR LIVING

Width

7 feet

Length

15 feet

Height*

7 feet, 6 inches

INTERIOR BATHROOM

Width

7 feet

Length

8 feet

Height*

7 feet, 6 inches

*Heights are based off a standard shipping container. Taller high-cube containers are available upon request.

**All specifications and pricing subject to change without notice.

***Dimensions are approximate, as containers vary from manufacturer to manufacturer.

Looking to customize your container?

THE SKY'S THE LIMIT!

Each shipping container application is unique and therefore we understand that you may have unique requirements –from extra windows and doors to paint and flooring. Simple and hassle-free, these options can be added to any of our standard floor plans.
