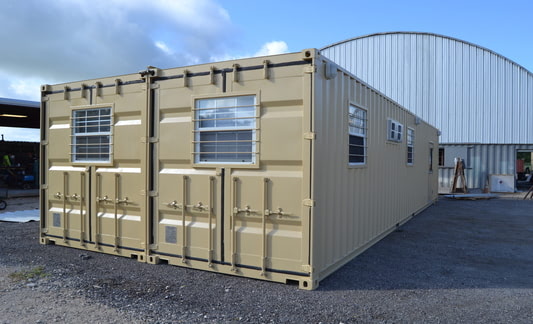

double container structure

20-FOOT DOUBLE CONTAINER STRUCTURE

40-FOOT DOUBLE CONTAINER STRUCTURE

New call-to-action

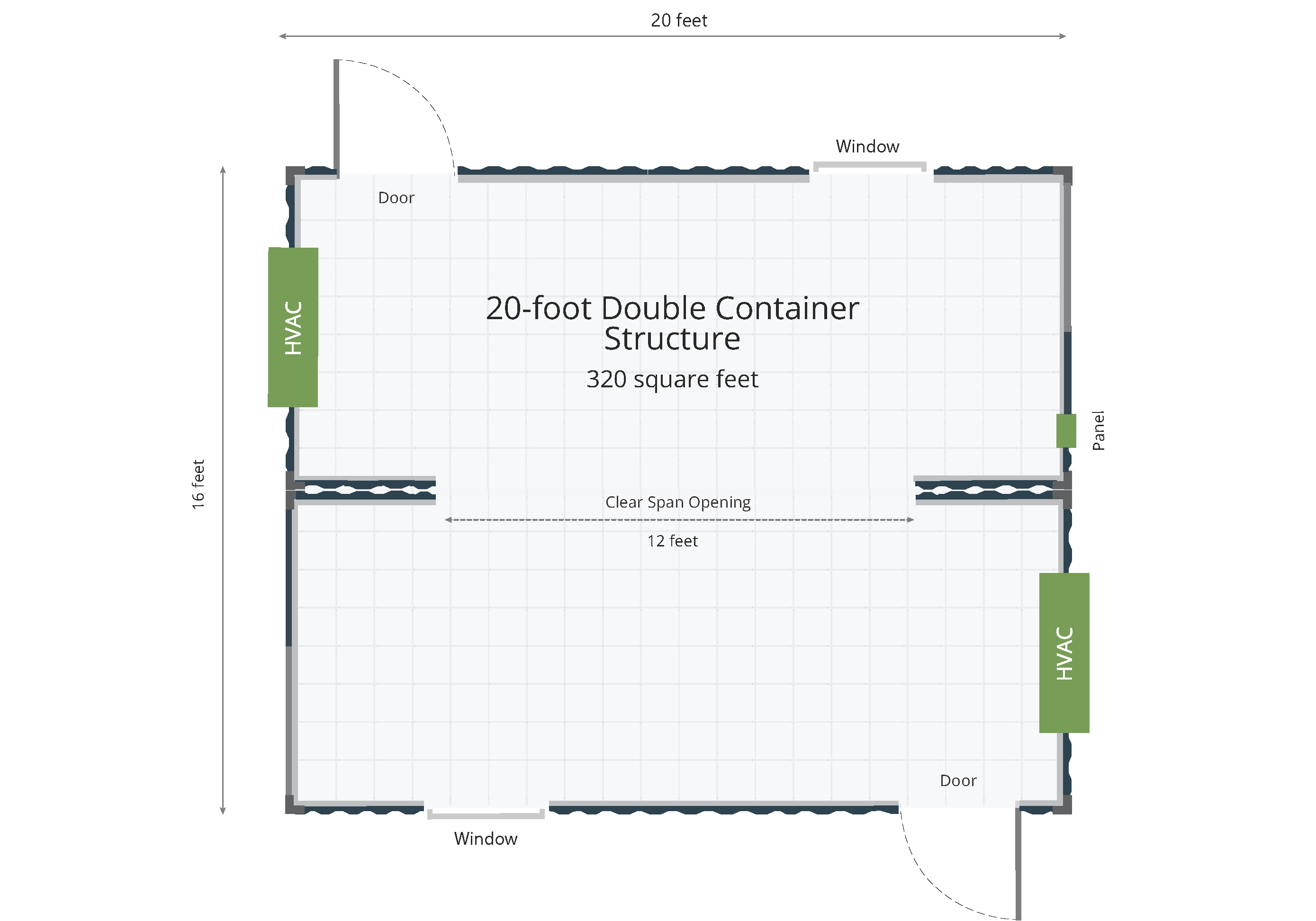

The 20-Foot Double Container Structure



Request a Quote

Primary Uses:
  • Workspace
  • Storage Space
  • Vehicle Check-in Facility
  • Construction Office
  • Equipment Enclosure
Additional Features:
  • Double-wide footprint: 320 square feet
  • Double-wide personnel doors
  • Clear span openings between containers
SPECS:
  • Built-in two 20-foot standard, one-trip (close to new) containers
  • Exterior paint
  • ¼-inch painted wood paneling over wood framing and batt insulation
  • Original marine-grade plywood or bamboo floors
  • Two sets of double-wide exterior personnel doors, 6-foot wide by 6-foot, 8-inches tall, with egress hardware
  • Two 16-foot wide clear span openings
  • Two 3-foot by 3-foot windows
  • Four standard 4-foot light fixtures, each with two 4-foot LED tubes
  • Ten quad 110V outlets
  • 125A panel with a disconnect that can be fed by a generator
  • Two data pass-throughs
  • Two 15K PTAC units

EXTERIOR

Width

16 feet

Length

19 feet,10.5 inches

Height

9 feet, 6 inches

INTERIOR

Width

15 feet

Length

18 feet, 6 inches

Height

8 feet, 6 inches

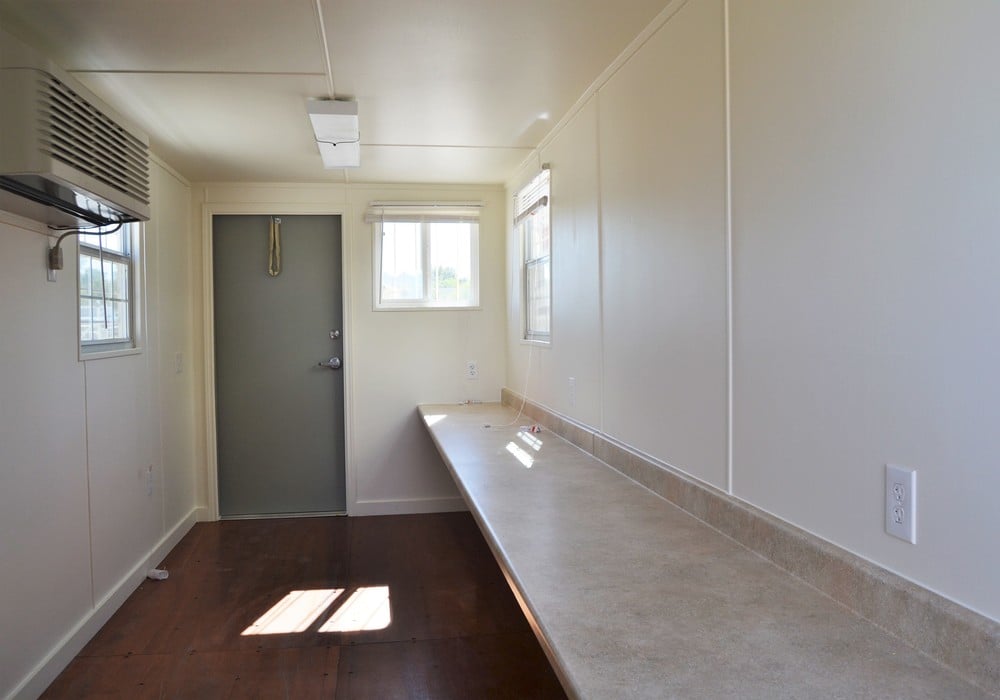

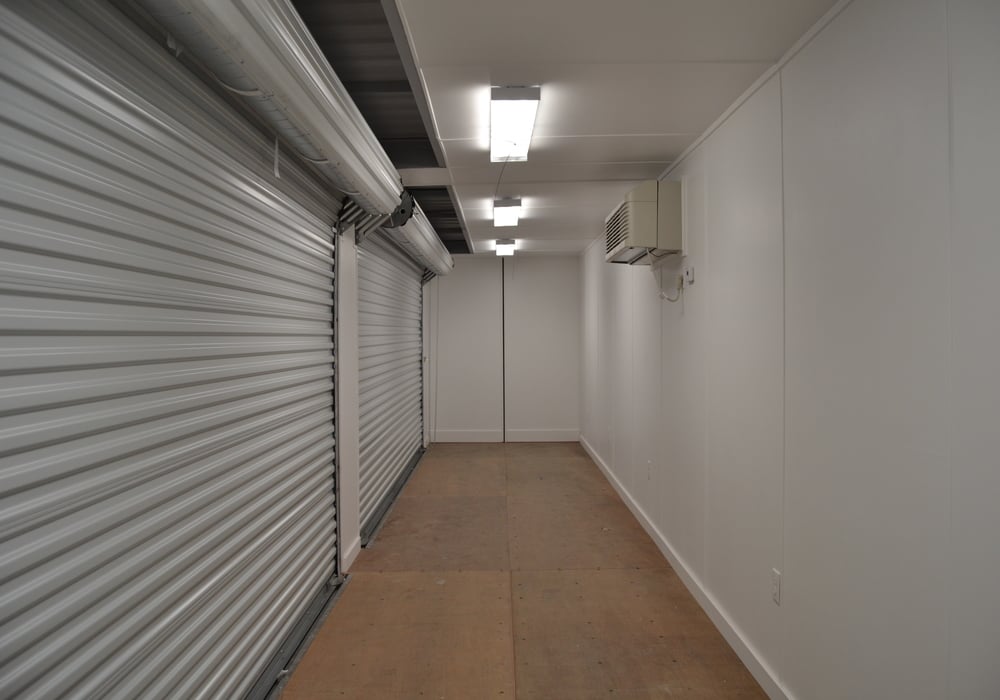

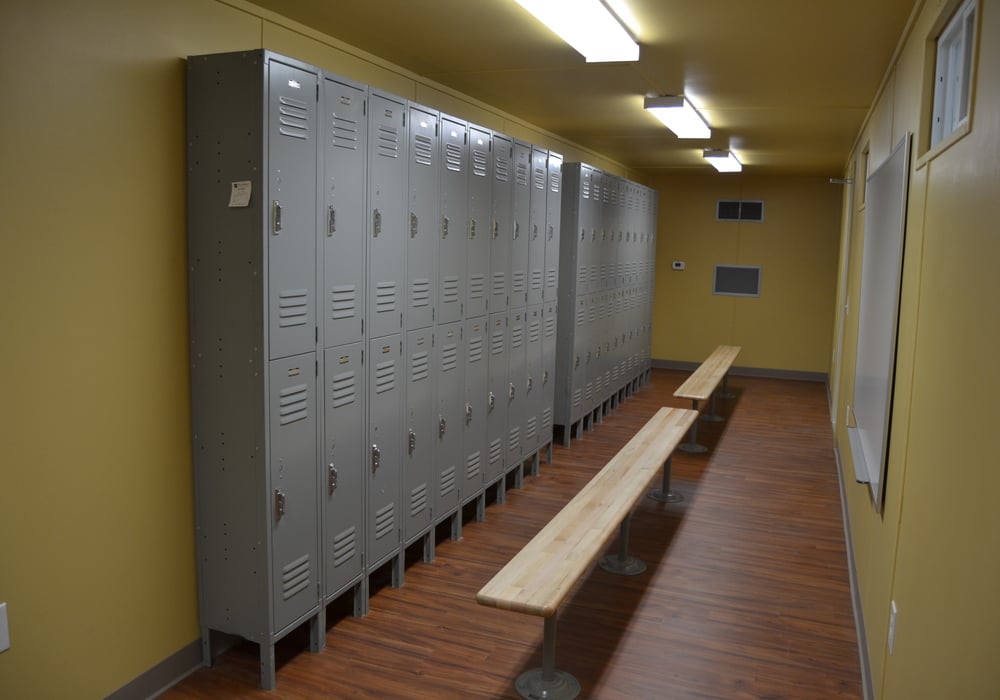

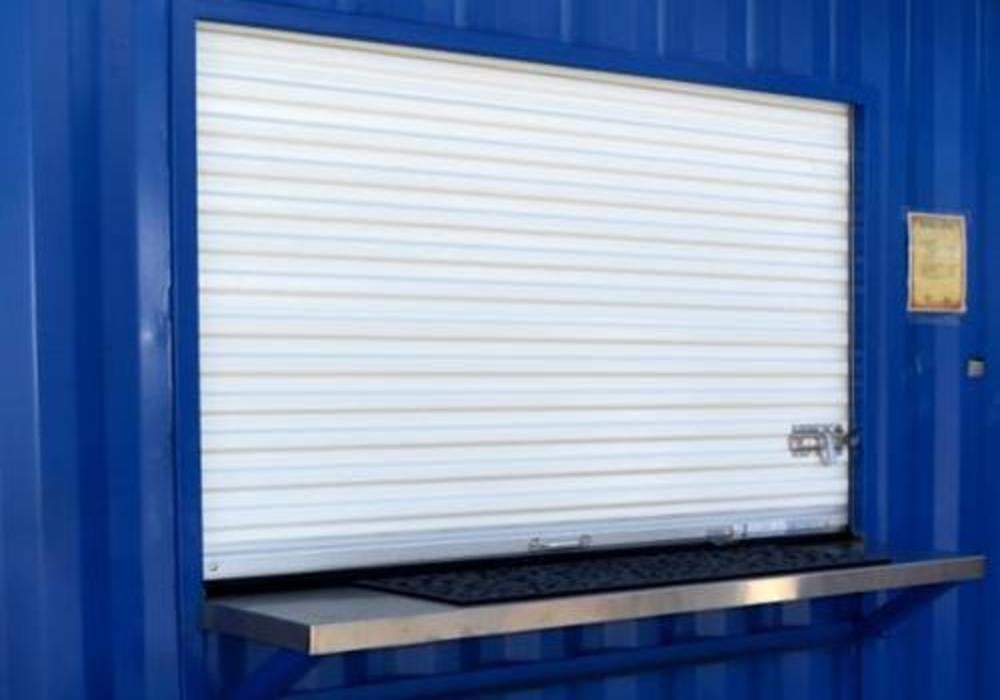

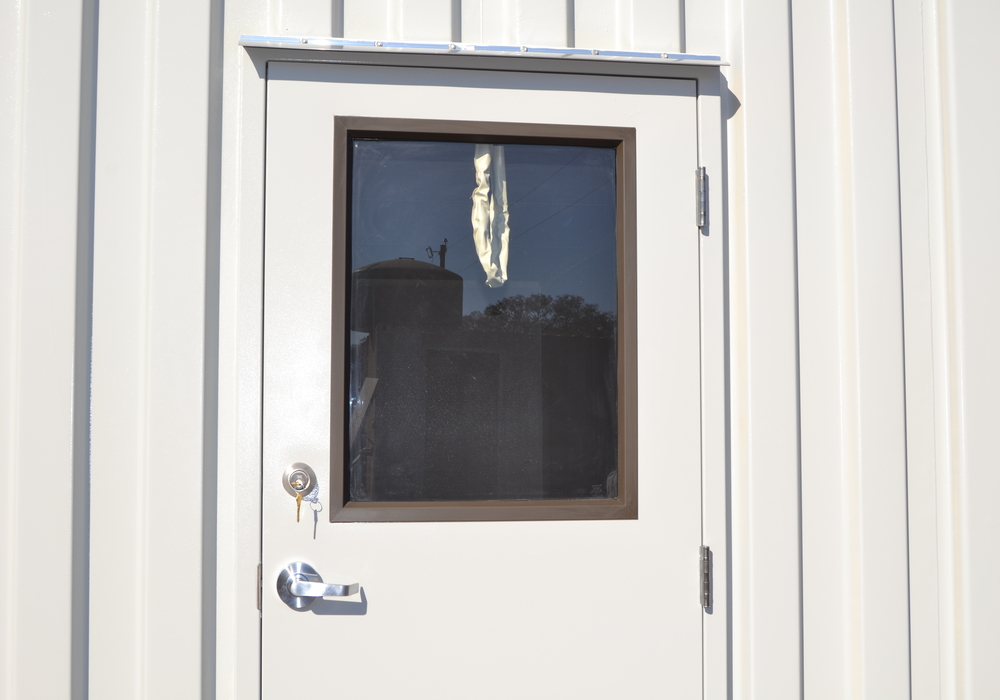

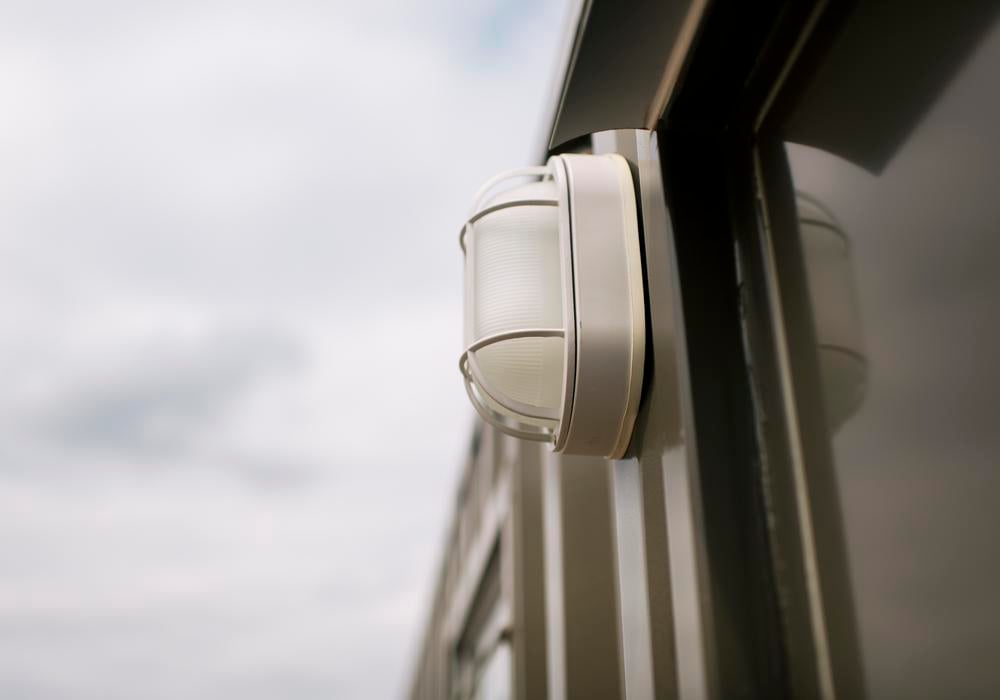

COMMON MODIFICATIONS

**All specifications and pricing subject to change without notice.

***Dimensions are approximate, as containers vary from manufacturer to manufacturer.

**** This image depicts a close representation of the structure, NOT the actual unit. We will update the image as more photos become available.

The 40-Foot Double Container Structure



Request a Quote

Primary Use:
  • Workspace
  • Storage Space
  • Vehicle Check-in Facility
  • Construction Office
  • Equipment Enclosure
Additional Features:
  • Double-wide footprint: 640 square feet
  • Double-wide personnel doors
  • Clear span openings between containers
SPECS:
  • Built-in two 40-foot standard, one-trip (close to new) containers
  • Exterior paint
  • ¼-inch painted wood paneling over wood framing and batt insulation
  • Original marine-grade plywood or bamboo floors
  • Two sets of double-wide exterior personnel doors, 6-foot wide by 6-foot, 8-inches tall, with egress hardware
  • Two 6-foot by 3-foot windows
  • Two 16-foot wide clear span openings
  • Eight standard 4-foot light fixtures, each with two 4-foot LED tubes
  • Twelve quad 110V outlets
  • 125A panel with a disconnect
  • Two data pass-throughs
  • Four 15K PTAC units

EXTERIOR

Width

16 feet

Length

40 feet

Height

9 feet, 6 inches

INTERIOR

Width

15 feet

Length

38 feet, 7 inches

Height

8 feet, 6 inches



COMMON MODIFICATIONS

**All specifications and pricing subject to change without notice.

***Dimensions are approximate, as containers vary from manufacturer to manufacturer.

**** This image depicts a close representation of the structure, NOT the actual unit. We will update the image as more photos become available.
