LIVING CONTAINERS



20-FOOT LIVING CONTAINER

40-FOOT LIVING CONTAINER

Download Living Space floor plan catalog

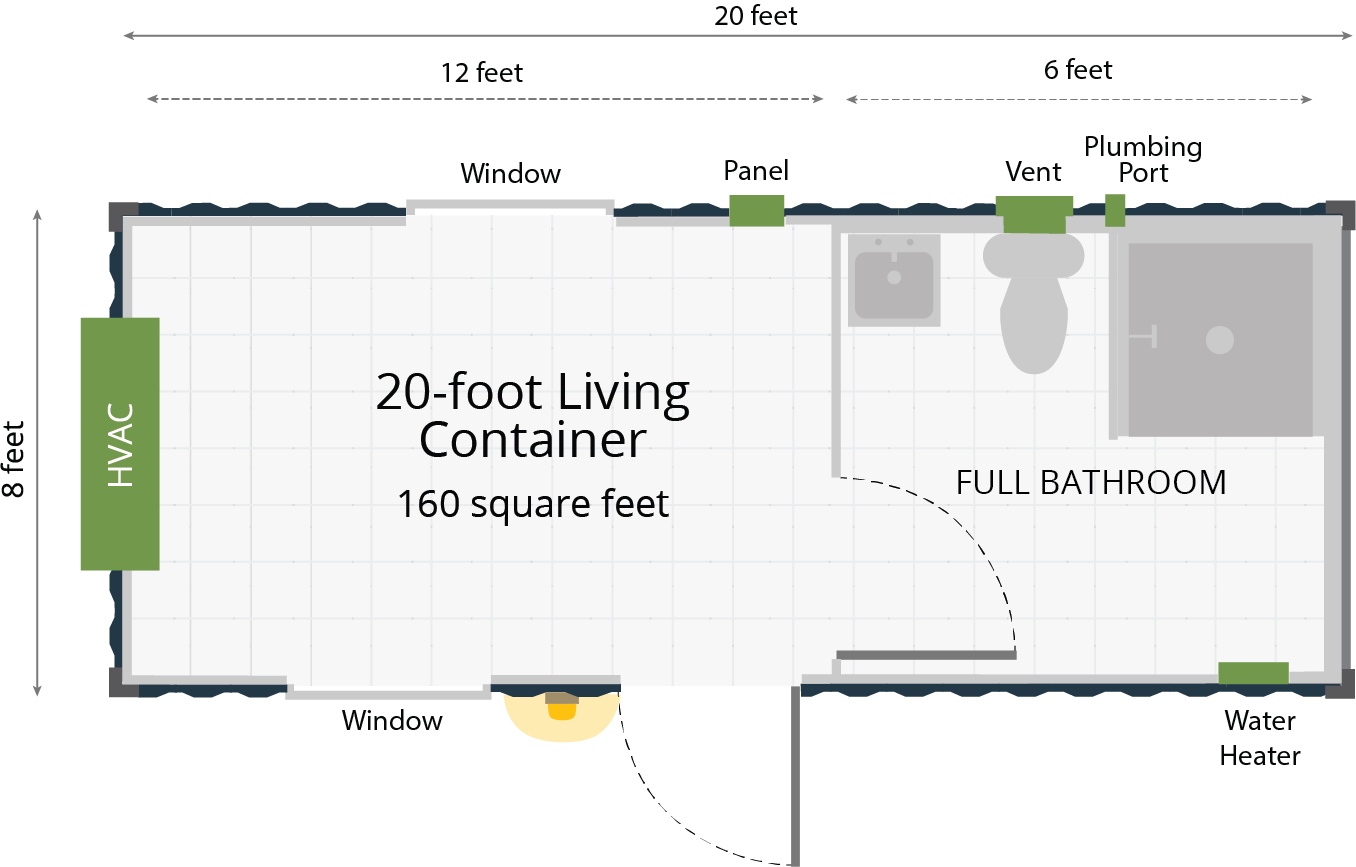

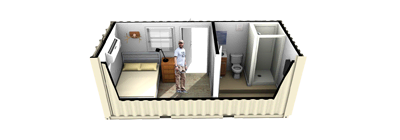

The 20-Foot Living Container

7402301

Starting Price: $27,129

SPECS
  • Built-in one 20-foot standard, one-trip (close to new) container
  • Exterior paint
  • ½-inch textured and painted gypsum drywall over wood framing and batt insulation
  • Two 3-foot by 3-foot windows
  • One 3-foot wide exterior personnel door
  • One 2-foot wide interior door
  • One exterior security light adjacent to the personnel door
  • Original marine-grade plywood or bamboo floors in living area
  • Vinyl coin flooring in bathroom
  • 125A capacity panel with 125A exterior disconnect
  • Two standard 4-foot LED light fixtures in living area
  • Two standard 2-foot LED light fixtures in bathroom
  • Six duplex 110V outlets
  • One data pass-through
  • One 15K PTAC unit
  • One exterior plumbing connection
  • One 18kw electric tankless water heater
  • One shower stall
  • One toilet
  • One sink vanity with mirror
  • One ventilation fan
  • One partition wall

EXTERIOR

Width

8 feet

Length

19 feet, 10.5 inches

Height*

8 feet, 6 inches

INTERIOR LIVING

Width

7 feet

Length

12 feet

Height*

7 feet, 6 inches

INTERIOR BATHROOM

Width

7 feet

Length

6 feet

Height*

7 feet, 6 inches

*Heights are based off a standard shipping container. Taller high-cube containers are available upon request.

**All specifications and pricing subject to change without notice.

***Dimensions are approximate, as containers vary from manufacturer to manufacturer.

Want to customize a floor plan?

From extra windows and doors to paint and flooring, add modification options from our extensive design library to any floor plan, hassle-free.

VIEW MODIFICATION OPTIONS

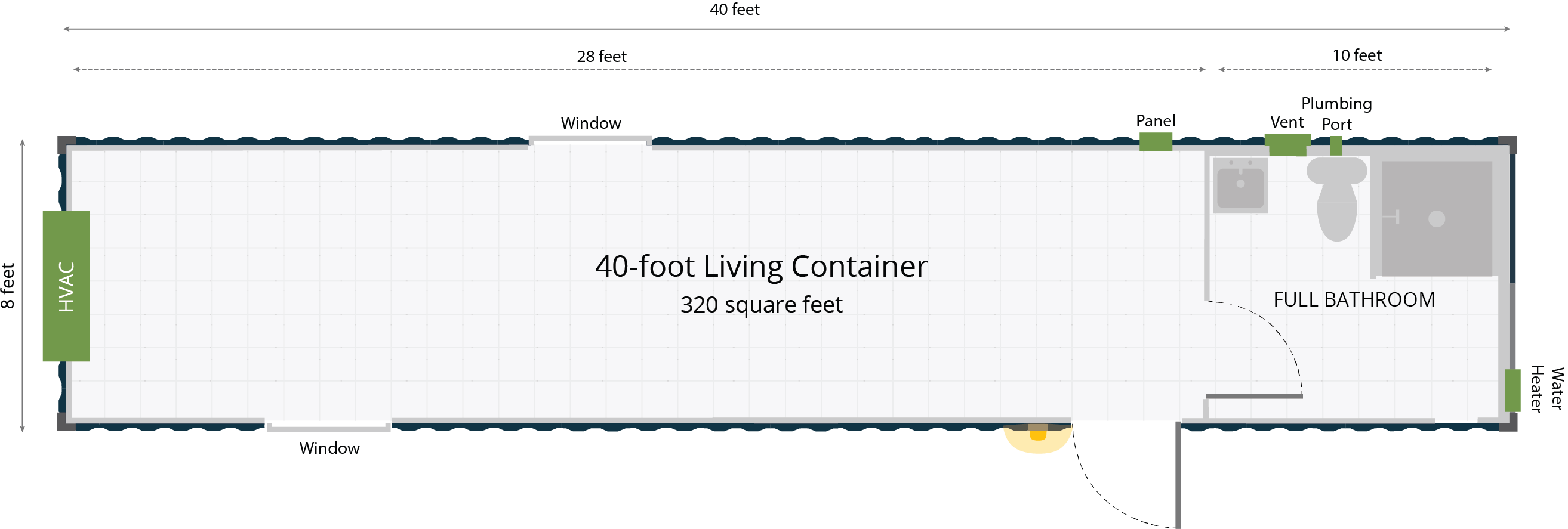

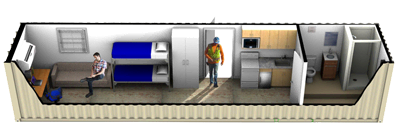

The 40-Foot Living Container

7402303

Starting Price: $35,854

SPECS
  • Built-in one 40-foot standard, one-trip (close to new) container
  • Exterior Paint
  • ½-inch textured and painted gypsum drywall over wood framing and batt insulation
  • Two 3-foot by 3-foot windows
  • One 3-foot wide exterior personnel door
  • One 2-foot, 6-inch wide interior door on the partition wall
  • One exterior security light adjacent to the personnel door
  • Original marine-grade plywood or bamboo floors in living area
  • Vinyl coin flooring in bathroom
  • 125A capacity panel with 125A exterior disconnect
  • Three standard 4-foot LED light fixtures in living area
  • Two standard 2-foot LED light fixtures in bathroom
  • Seven duplex 110V outlets
  • One data pass through
  • One 15K PTAC unit
  • One exterior ¾-inch water supply connection for cold water
  • One exterior 3-inch drainage connection and 2-inch vent connection
  • One 18kw electric tankless water heater
  • One 3-foot by 3-foot shower stall
  • One toilet
  • One sink vanity with mirror
  • One ventilation fan

EXTERIOR

Width

8 feet

Length

40 feet

Height*

8 feet, 6 inches

INTERIOR LIVING

Width

7 feet

Length

28 feet

Height*

7 feet, 4 inches

INTERIOR BATHROOM

Width

7 feet

Length

10 feet

Height*

7 feet, 4 inches

*Heights are based off a standard shipping container. Taller high-cube containers are available upon request.

**All specifications and pricing subject to change without notice.

***Dimensions are approximate, as containers vary from manufacturer to manufacturer.

Want to customize a floor plan?

From extra windows and doors to paint and flooring, add modification options from our extensive design library to any floor plan, hassle-free.

VIEW MODIFICATION OPTIONS
