2-STORY OBSERVATION WORKSPACE

2-STORY OBSERVATION WORKSPACE MULTI-CONTAINER STRUCTURE

New call-to-action

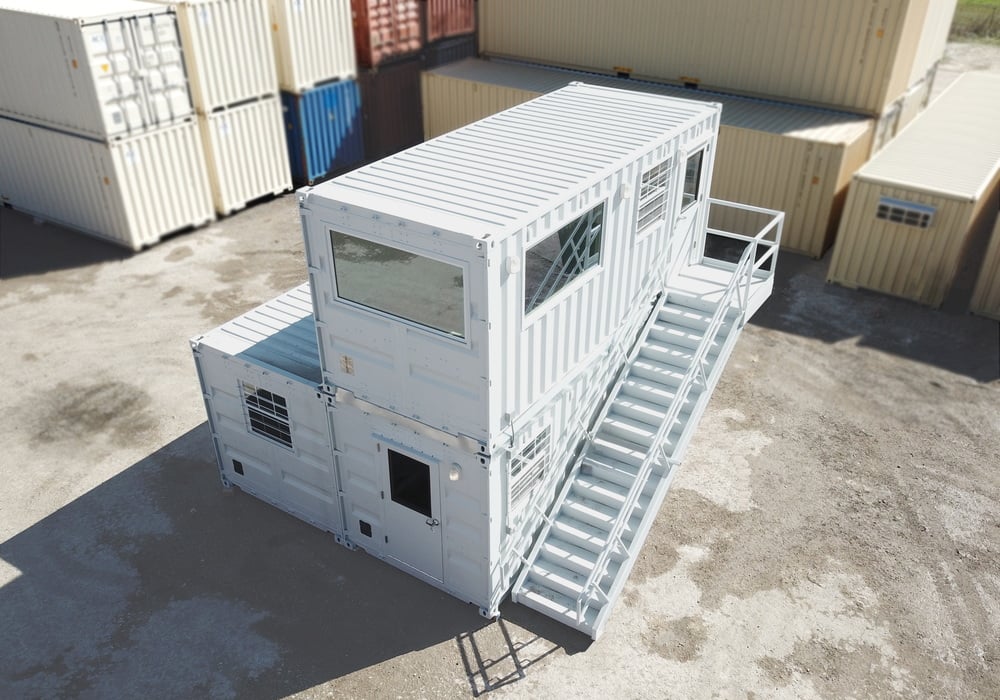

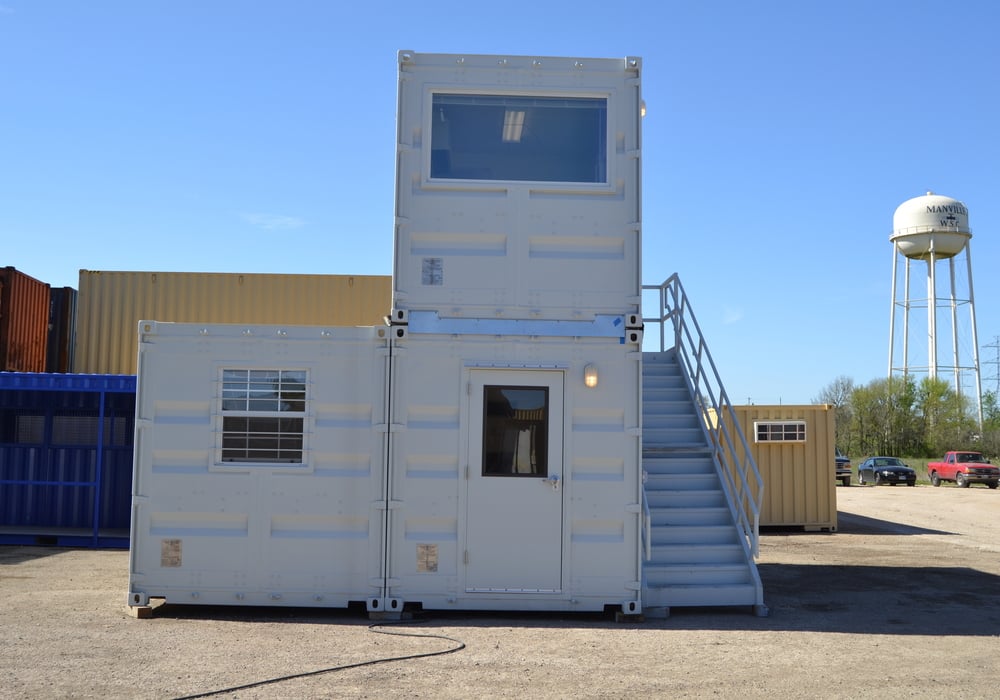

The 2-Story Observation Workspace Multicontainer

7800001

Starting Price: $ 86,044

FIRST FLOOR SPECS

  • Built-in two 20-foot standard, one-trip (close to new) containers
  • Exterior paint
  • 1⁄4-inch painted wood paneling over wood framing and batt insulation
  • Three 3-foot by 3-foot operable windows

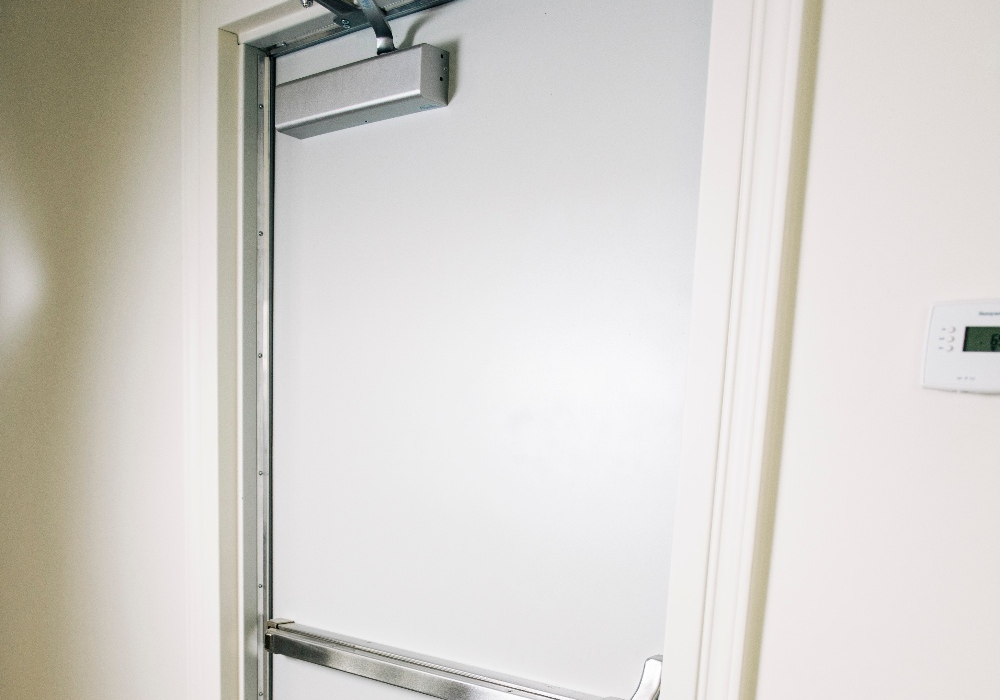

  • One 3-foot wide exterior personnel door with window

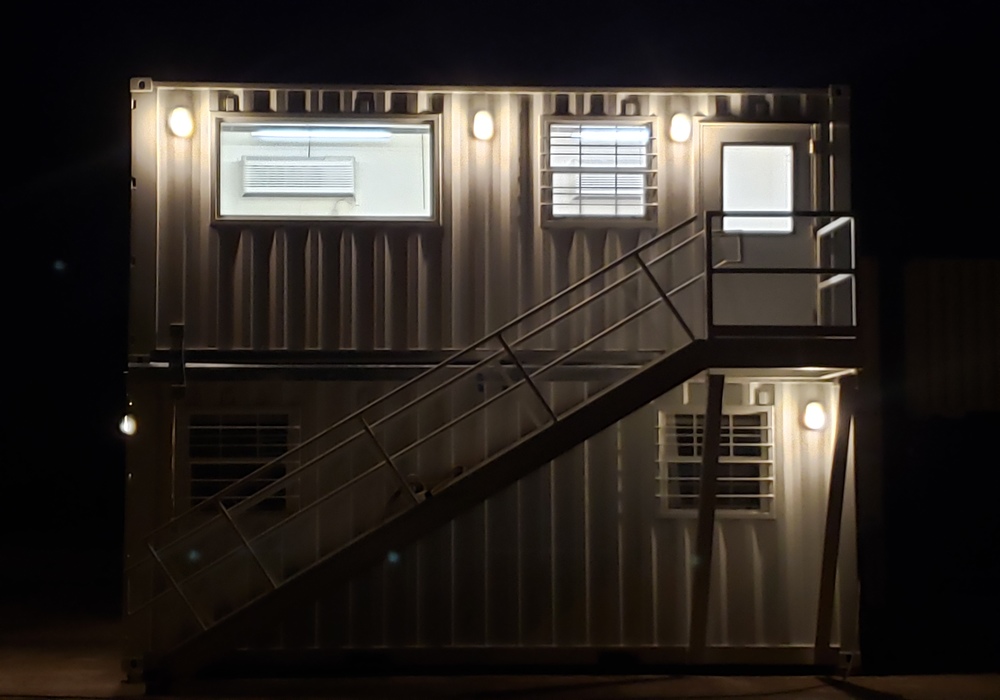

  • One exterior security light adjacent to the personnel door
  • Original marine-grade plywood or bamboo floors
  • 125A capacity panel with 100A exterior disconnect
  • Four standard 4-foot light fixtures, each with two 4-foot LED tubes
  • Five duplex 110V outlets
  • One data pass-through
  • Falcon cross-over electrical system
  • One 2T BARD unit
SECOND FLOOR SPECS
  • Built-in one 20-foot standard, one-trip (close to new) container
  • Exterior paint
  • 1⁄4-inch painted wood paneling over wood framing and batt insulation

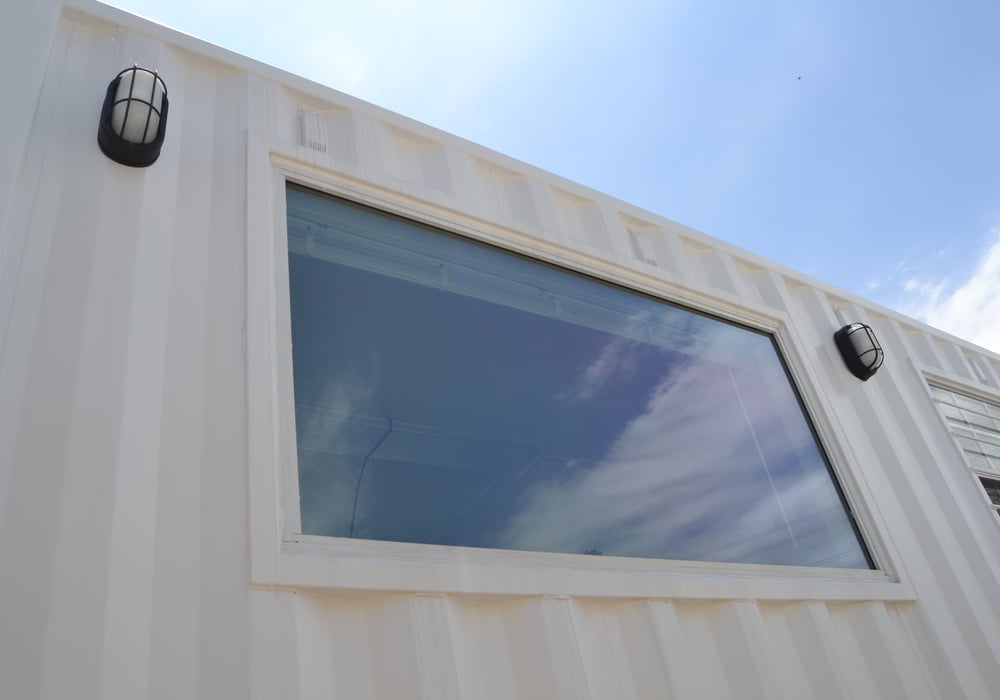

  • Two 6-foot by 3-foot fixed-pane windows
  • One 3-foot wide exterior personnel door with window
  • One exterior security light adjacent to the personnel door
  • Original marine-grade plywood or bamboo floors
  • Two standard 4-foot light fixtures, each with two 4-foot LED tubes
  • Five duplex 110V outlets
  • One data pass-through
  • One 15K PTAC unit
  • One OSHA Steel staircase with 4-foot landing and double handrail

FIRST FLOOR EXTERIOR

Width

16-feet

Length

19 feet, 10.5 inches

Height*



8-feet, 6-inches

FIRST FLOOR INTERIOR

Width

14-feet

Length

18-feet, 6-inches

Height*

7-feet, 4-inches

SECOND FLOOR EXTERIOR

Width

8-feet

Length

19 feet, 10.5 inches

Height*

8-feet, 6-inches

SECOND FLOOR INTERIOR

Width

7-feet

Length

18-feet, 6-inches

Height*

7-feet, 4-inches


COMMON MODIFICATIONS

*Heights are based off a standard shipping container. Taller high-cube containers are available upon request.

**All specifications and pricing subject to change without notice.

***Dimensions are approximate, as containers vary from manufacturer to manufacturer.
