How to Keep Modular Multi-Story Buildings Mobile

Mar 20, 2019
How to Keep Modular Multi-Story Buildings Mobile

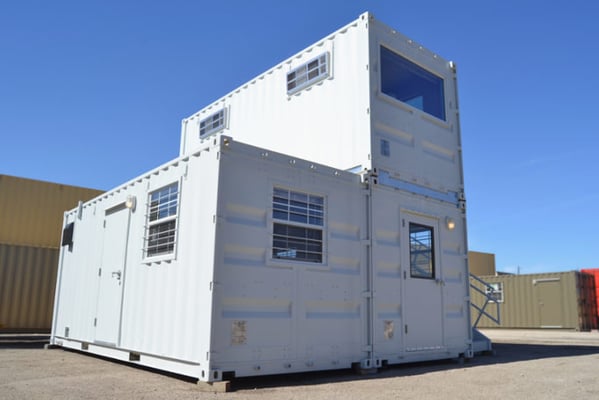

What if office buildings could be packed up and relocated to a more convenient space in your facility or even taken on the road to your new headquarters? That’s a possibility with container-based structures. Falcon’s own two-story office building is classified as a temporary mobile structure because we can unstack the container modules and move them whenever we need to. Here’s what it takes to make a modular multi-story building mobile.

AC462-Compliant Shipping Containers for Structural Integrity

AC462-compliant ISO containers are confirmed to have certain structural properties, such as weight capacity, which engineers can use to design multi-level container buildings. In turn, code officials can confidently evaluate and approve structures built with AC462-compliant containers.

A Flat, Level, and Dry Surface Such as a Foundation

It’s critical to keep all the modules in a multi-level container structure aligned and level. Otherwise, you may end up with a Leaning Tower of Pisa situation. While single unit container offices may be placed on bare earth, larger multi-unit structures do require some kind of foundation or pier system to ensure the building stays level.

Airports, marinas, and construction sites may choose to place multi-story modular buildings directly onto concrete docks and parking lots. Undeveloped locations in your facility will require additional site prep.

Twist locks and Bridge Fittings to Join the Containers

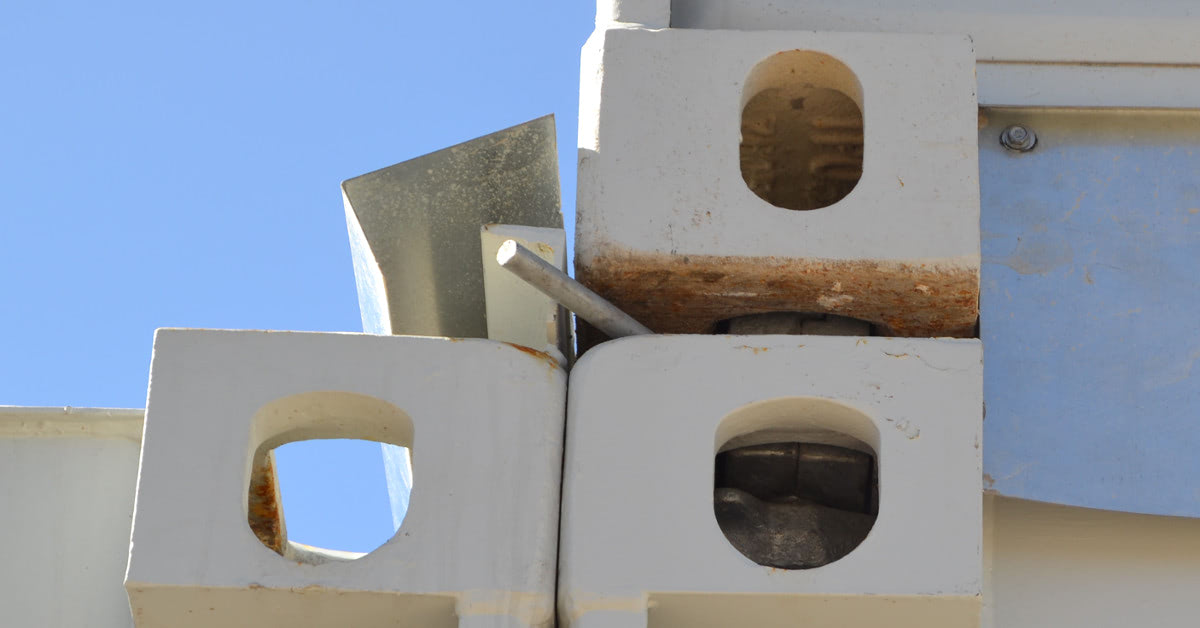

Twist lock that secures a two story shipping container building

Instead of permanently welding shipping container modules together, you can secure them the same way shipping companies do at sea. Bridge fittings lock adjacent containers together, and twist locks secure stacked containers. Shipping companies trust twist locks and bridge fittings to hold containers stacked nine-high, so you can be confident when using them in a two-story container building.

Detachable Stairs to Reach Upper Levels

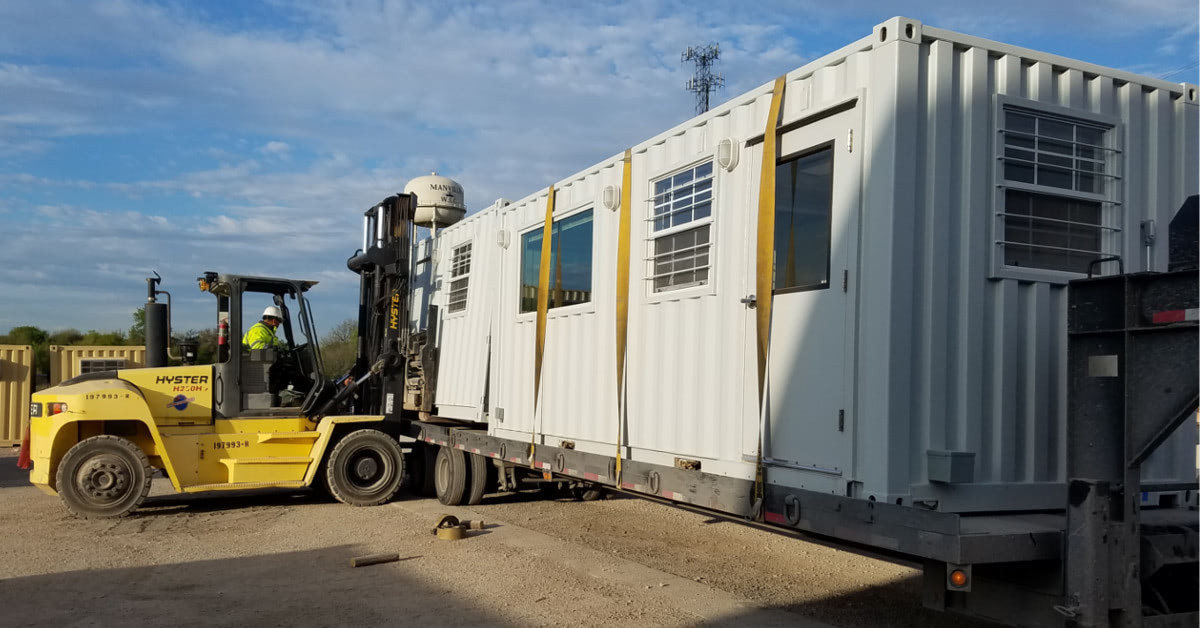

Multi-level modular buildings are shipped as individual units, usually one container per truck, and then stacked together on site. Therefore, the stairs connecting the upper story must also be detachable. Carefully measured steel stairs travel with container-modules and then get bolted to the side of the assembled building.

A Façade-Free Exterior

A mobile module for a multi-story building

Facility managers must embrace the corrugated steel exterior of multi-story container buildings to keep them mobile. While facades that simulate plaster, brick, and other traditional building materials help container buildings fit in with their surroundings, they would have to be torn off each time the building was disassembled for relocation.

Instead, we recommend covering the container module exteriors with nothing but a clean coat of paint. Neutral or company colors give container buildings a branded and modern looking exterior that you won’t want to hide.
